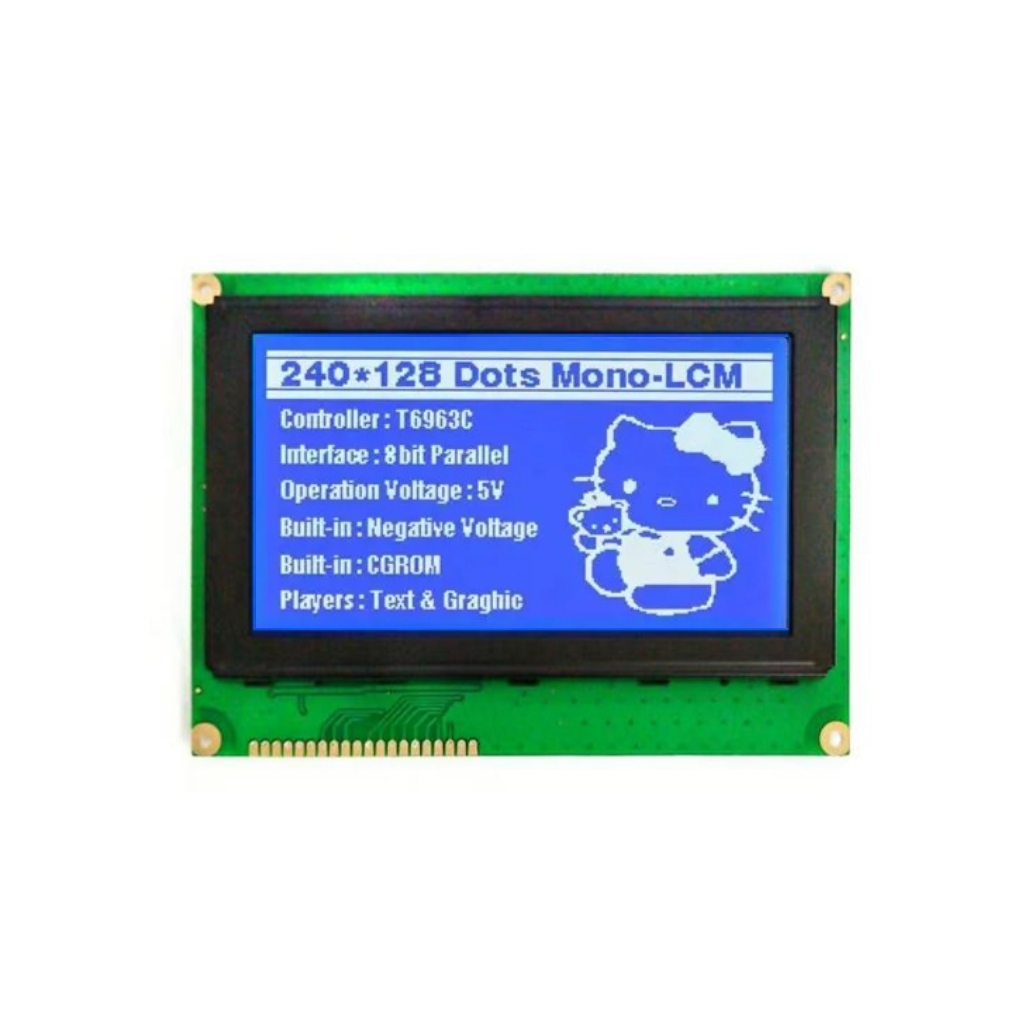

This product is a 240128 LCD dot matrix display capable of displaying graphics at a resolution of 240 columns × 128 rows of pixels. The display adopts STN Negative mode LED backlit LCD, showing blue background with white characters, offering high contrast and a wide viewing angle. The module integrates a driver chip and is manufactured using COB and SMT processes. It connects to the host MCU via an 8-bit parallel LCD interface and is used for displaying various images and text.

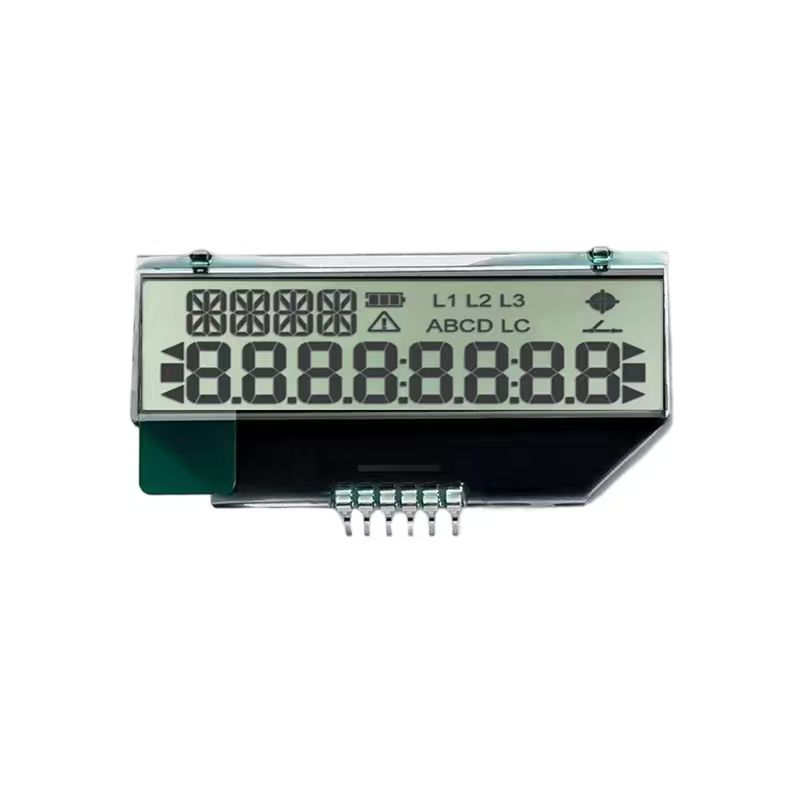

COG SEGMENT LCD offers both cost and reliability advantages in electric meters. The chip is directly bonded onto the glass, eliminating traditional connectors and reducing material and assembly costs. The fully sealed structure resists moisture and vibration, adapting to complex environments. With low power consumption and high stability, it meets the stringent requirements of smart grids, making it a cost-effective and reliable solution.

The 12.1-inch IPS panel features a 1280×800 high-definition resolution and a high brightness of 550 cd/m2, ensuring that displayed content remains clear and legible even under direct outdoor sunlight. The full viewing angle technology guarantees true and sharp colors from any viewing direction. The product supports stable operation over an ultra-wide temperature range from -30°C to +80°C, adopts a 3.3V low-voltage power supply and a standard LVDS interface, offers strong anti-interference capability, and is compatible with various industrial control systems. The backlight has a service life of up to 50,000 hours, providing stable operation and low failure rate, which significantly reduces maintenance costs. The slim and lightweight design facilitates device integration and is widely applicable in demanding scenarios such as industrial control, outdoor smart equipment, and security terminals, delivering durable and clear visual assurance for your devices.

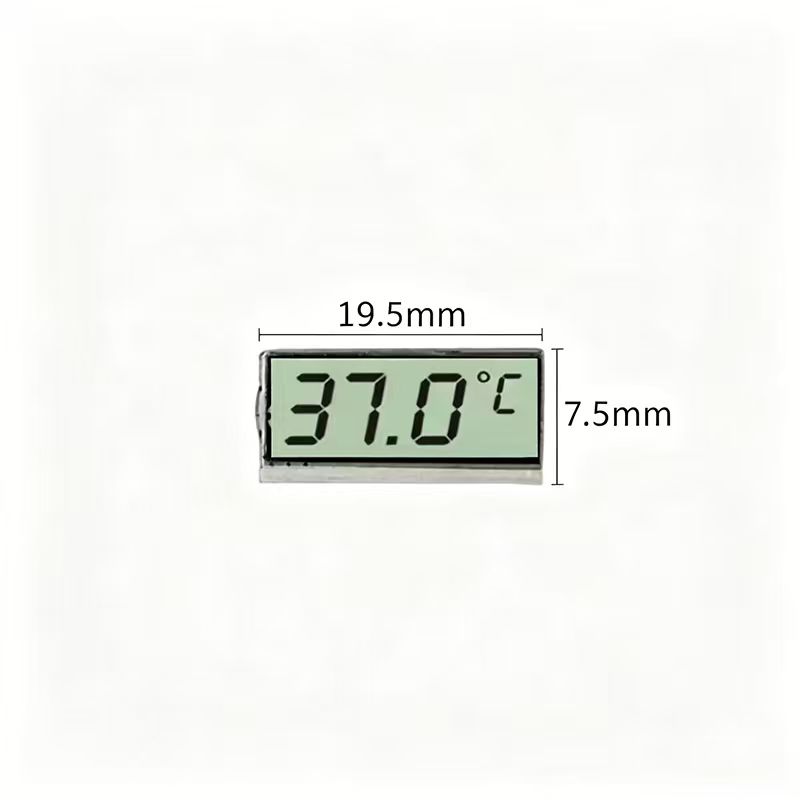

Ultra-small-sized segment LCD typically refers to products with both the length and width of the viewing area less than 20 mm. Leveraging the core advantages of low power consumption, high contrast ratio, and a streamlined structure, this type of LCD can be widely adapted to various small electronic terminals, making it an ideal solution for minimalist display scenarios.

This product is a 240×128 LCD dot matrix display capable of displaying graphics at a resolution of 240 columns by 128 rows of pixels. The display features an STN yellow-green mode LED-backlit LCD, presenting black characters on a yellow-green background with high contrast and a wide viewing angle. The module integrates a driver chip and utilizes both COB and SMT manufacturing processes. It connects to the host MCU via an 8-bit parallel LCD interface and is designed to display various images and text.

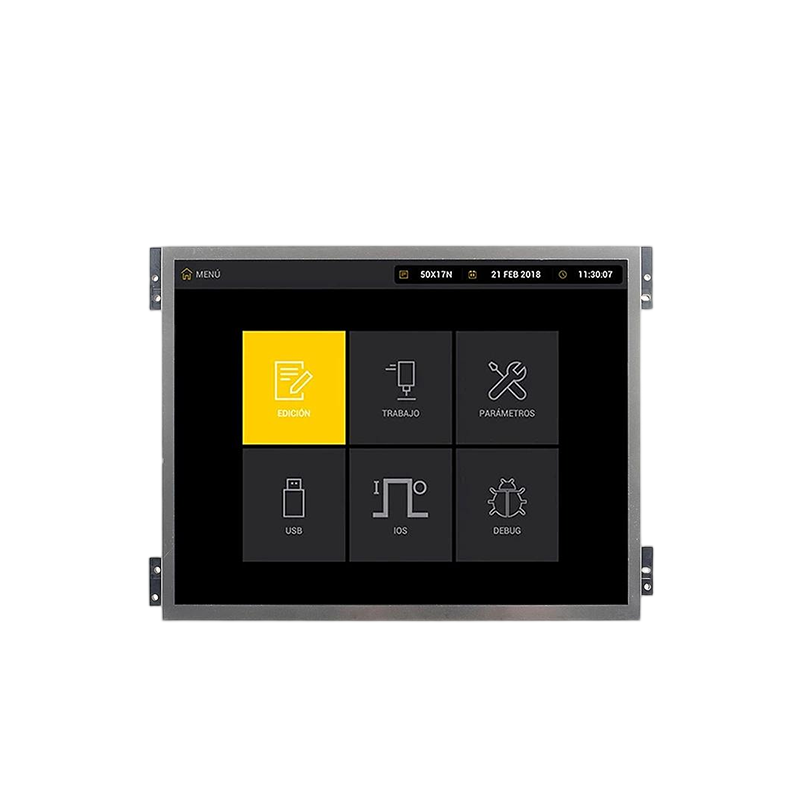

10.4 inch TFT display with IPS full viewing angle panel, 1024×768 resolution, 1000 cd/m2 brightness, clearly visible under sunlight. Supports ultra-wide temperature operation from -30°C to +80°C, 3.3V power supply with LVDS industrial interface, strong anti-interference capability, compliant with ROHS/REACH standards. Suitable for applications such as construction machinery display instruments, marine industrial control instruments, outdoor charging human-machine interface, etc.

HTN LCD features a mature manufacturing process, high yield, and low cost. In reflective mode without backlight or with the backlight normally off, its driving power consumption can be as low as the microamp (μA) level.

The Ultra-Wide Temperature Segment LCD operates stably in extreme environments and is primarily used in industrial, power, outdoor industrial control, and other application fields. The standard version reliably withstands temperatures from -40°C to 90°C, meeting the requirements for full operating conditions. For extremely cold scenarios at -45°C and below, an LCD with an auxiliary heating function can be customized to overcome the low-temperature limitations of conventional liquid crystal materials, fully adapting to various harsh high- and low-temperature working environments.

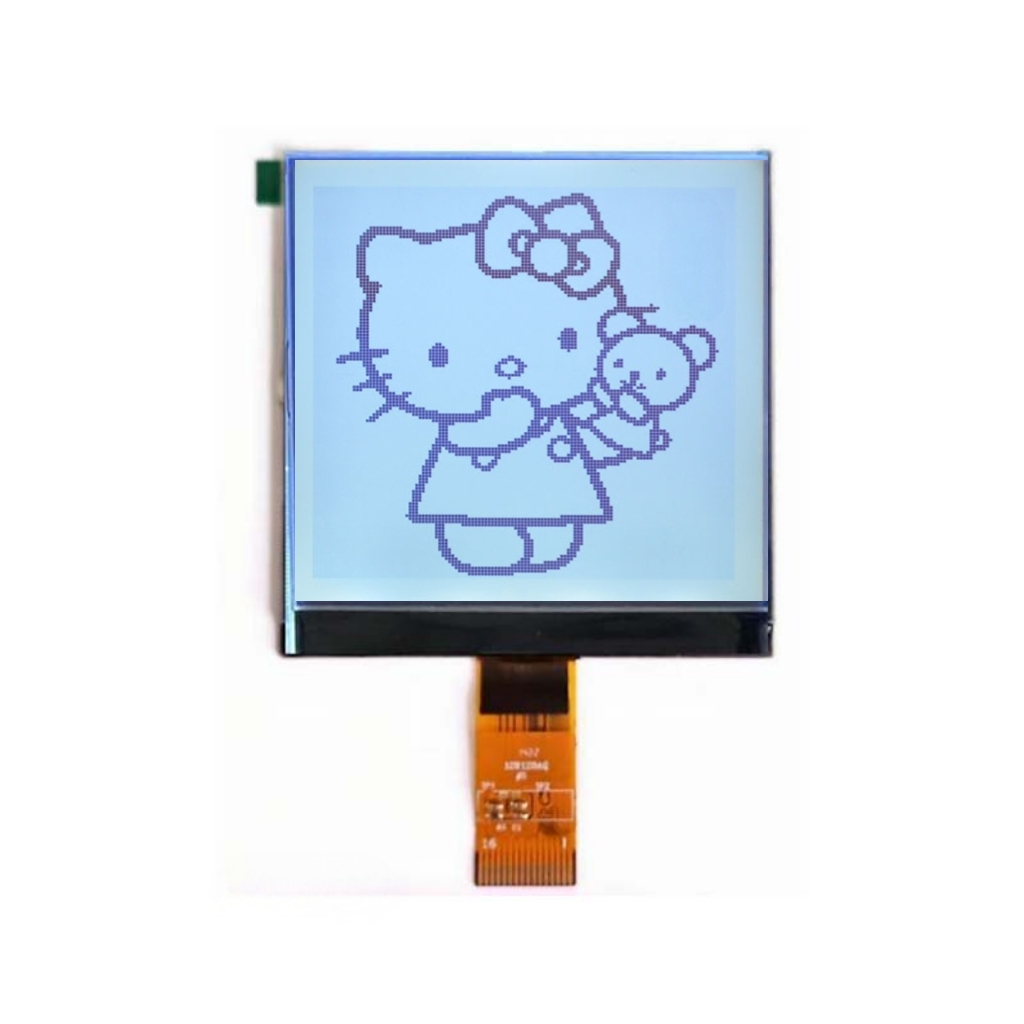

This product is a 128×128 LCD dot matrix display capable of displaying graphics at 128 columns × 128 rows of pixels. The display adopts FSTN mode, presenting blue-black characters on a gray background with high contrast and a wide viewing angle. The module integrates a driver IC and is manufactured using the COG (Chip-on-Glass) process, resulting in a thin, lightweight product with low power consumption. It connects to a host MCU via an SPI interface or an 8-bit parallel LCD interface, and is used for displaying various images and text.

The 12864 LCD in COG (Chip-on-Glass) mode offers four major advantages: extreme cost-effectiveness, a stable and reliable supply chain, compliance-friendly international certifications, and extreme environmental adaptability, making it an ideal display solution for OEMs balancing performance and total cost of ownership (TCO).

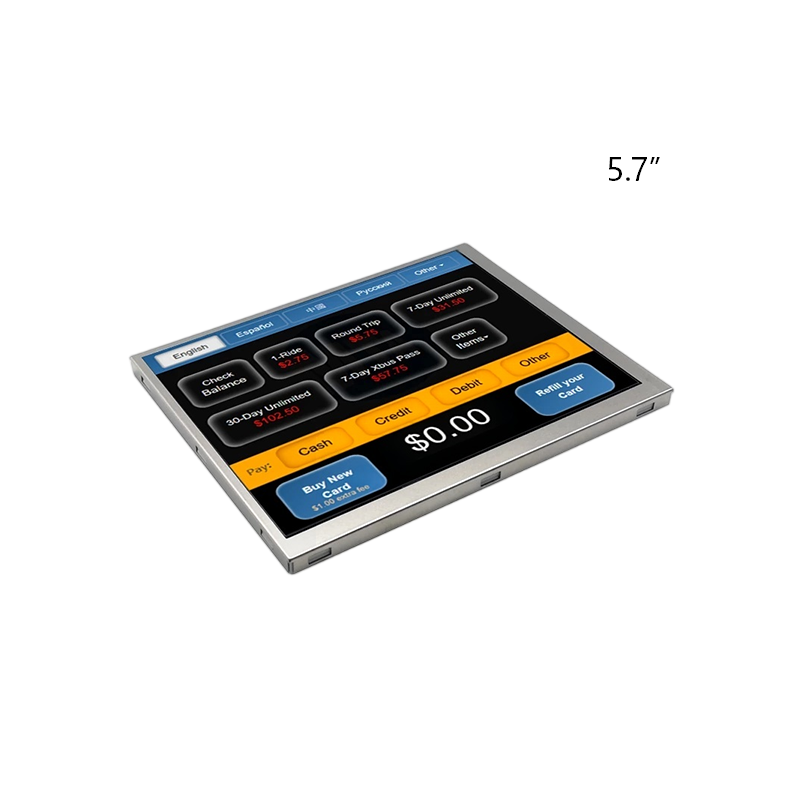

5.7-inch industrial-grade IPS TFT LCD display, standard with 640×480 high-definition resolution, equipped with high-brightness backlight configuration, ensuring clear visibility even in strong outdoor light environments. Adopting IPS wide-viewing angle technology, it delivers accurate colors and no distortion from any viewing angle. The whole unit features an ultra-wide operating temperature range of -20℃ to +70℃, with industrial-grade anti-interference and anti-vibration performance, making it stable and durable, suitable for complex working conditions. It comes standard with a universal standard interface, compatible with various industrial control motherboards, easy to integrate, low development cost, and strictly complies with ROHS environmental regulations. Besides smart meters, it can be widely used in industrial control, self-service terminals, charging piles, medical instruments, and outdoor smart devices, making it an ideal supporting solution for industrial and commercial displays.

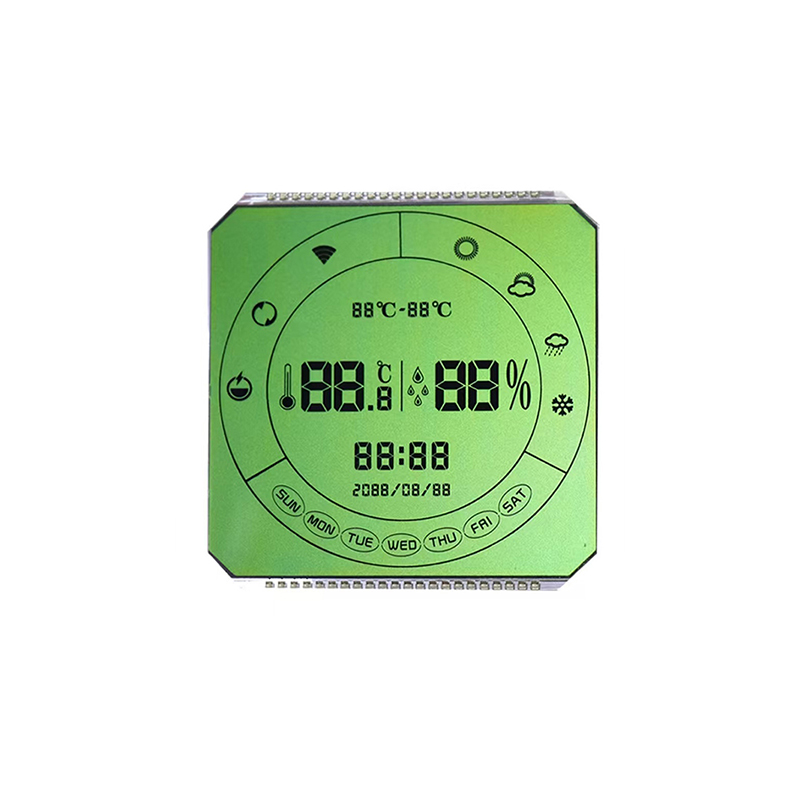

The viewing angle of STN LCDs is far superior to that of conventional TN/HTN screens, enabling them to meet the display requirements of complex images. Their duty drive typically supports 16 or more drive paths, up to a maximum of 240 paths, providing stable display with no crosstalk.
