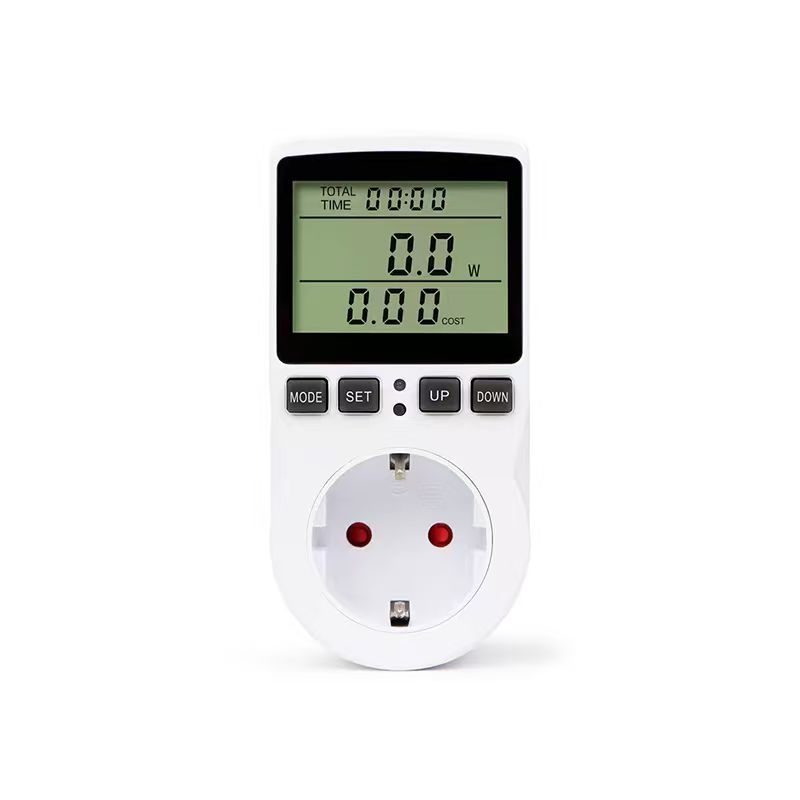

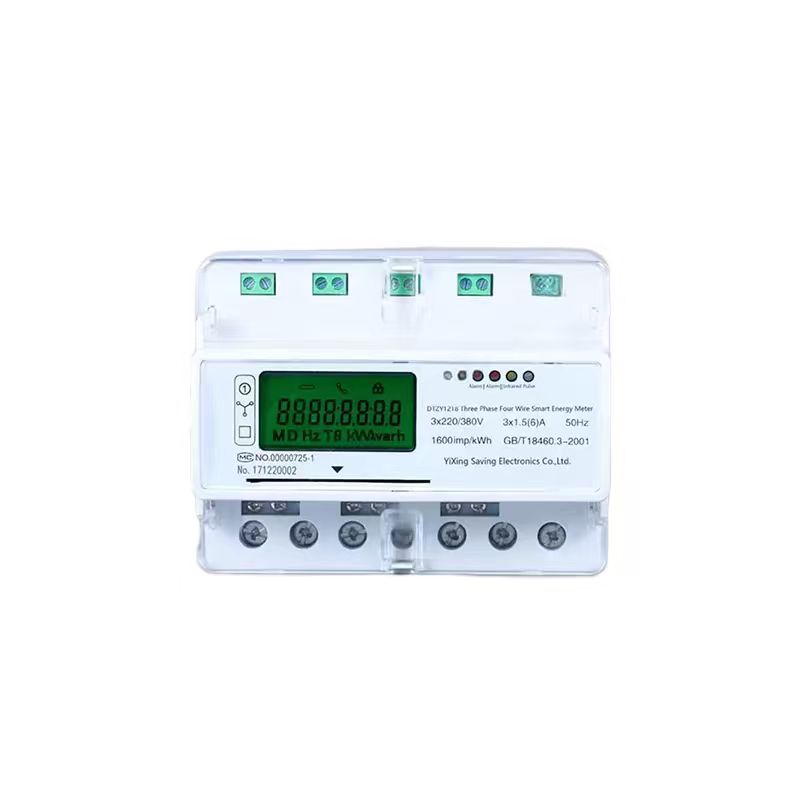

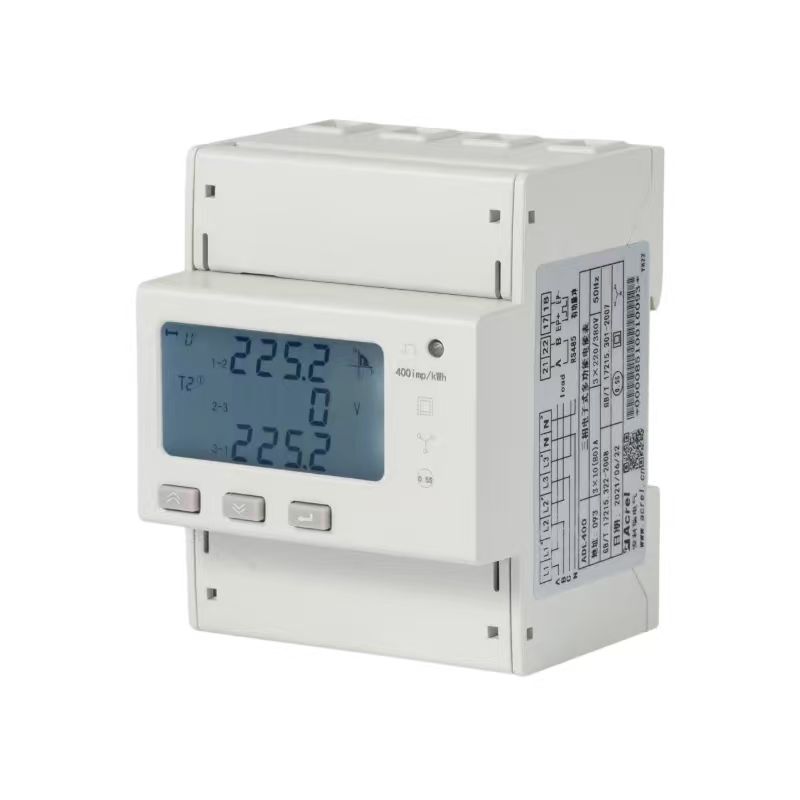

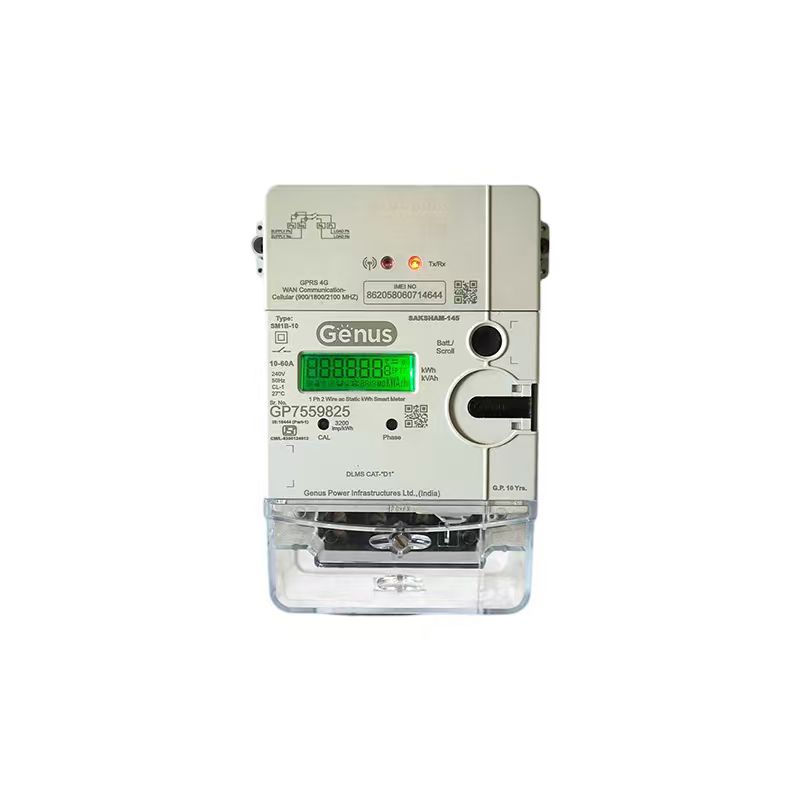

COG SEGMENT LCD offers both cost and reliability advantages in electric meters. The chip is directly bonded onto the glass, eliminating traditional connectors and reducing material and assembly costs. The fully sealed structure resists moisture and vibration, adapting to complex environments. With low power consumption and high stability, it meets the stringent requirements of smart grids, making it a cost-effective and reliable solution.
COG SEGMENT LCD directly bonds the driver chip onto the glass substrate, eliminating the PCB and connectors used in traditional COB (Chip on Board) processes, significantly reducing material costs. The simplified production process improves automation, reduces manual assembly steps, and effectively controls manufacturing costs. For the high-volume demand of electric meters, the COG solution, with its lower cost, helps equipment manufacturers enhance price competitiveness while simplifying supply chain management.
COG SEGMENT LCD features a fully sealed structure, with significantly improved vibration and moisture resistance, adapting to complex installation environments such as outdoor grid cabinets and basements. Fewer solder joints and connectors result in a lower failure rate, providing stable performance over the electric meter's service life of more than 10 years. This technology also offers excellent anti-aging properties, ensuring long-term accurate operation of the electric meter.
EASTERN DISPLAY focuses on the R&D and production of COG segment LCDs. With mature processes and stable supply capability, we provide highly adaptable customized display solutions. Our products feature excellent performance, complete certifications, wide applicability, and high cost-effectiveness, giving us outstanding market advantages. We offer stable cooperation and broad prospects.
| Manufacturer | Eastern?Display |
| Display content | Segment display |
| Background | Grey/Yellow-green |
| Interface | Parallel |
| Driver chip model | Specified |
| Module type | COG?LCD |
| Connection | FPC/PIN |
| Display type | TN /HTN/STN |
| Viewing angle | 6?/12 O'clock |
| Operating voltage | 3.3-5V |
| Operating temperature | -40-80℃ |
| Storage temperature | -40-85℃ |
| Lifetime | 100,000?H |
| Product features | Ultra-low power |
