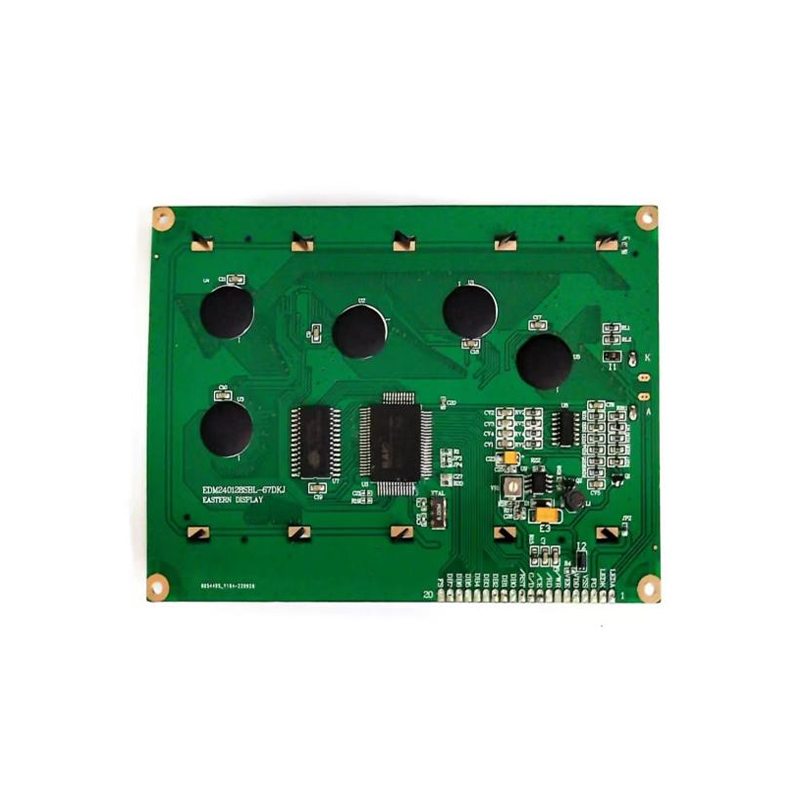

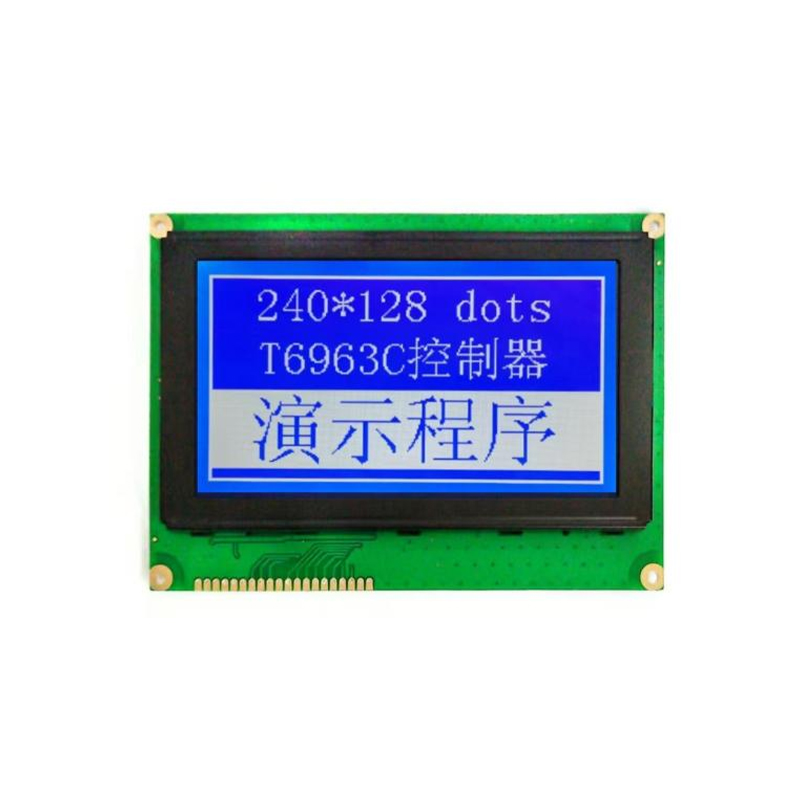

This product is a 240128 LCD dot matrix display capable of displaying graphics at a resolution of 240 columns × 128 rows of pixels. The display adopts STN Negative mode LED backlit LCD, showing blue background with white characters, offering high contrast and a wide viewing angle. The module integrates a driver chip and is manufactured using COB and SMT processes. It connects to the host MCU via an 8-bit parallel LCD interface and is used for displaying various images and text.
This product is a 240128 LCD dot matrix display capable of displaying graphics at a resolution of 240 columns × 128 rows of pixels. The display adopts STN Negative mode LED backlit LCD, showing blue background with white characters, offering high contrast and a wide viewing angle. The module integrates a driver chip and is manufactured using COB and SMT processes. It connects to the host MCU via an 8-bit parallel LCD interface and is used for displaying various images and text.
This type of graphic dot matrix LCD module is available in resolutions such as 122×32, 128×64, 128×128, 144×32, 160×160, 160×32, 160×80, 192×64, 240×64, 240×128, 320×240, and more. Customers can choose different combinations of LCD backlight and LCD panel according to product requirements, and custom options are also available.
| Manufacturer | Eastern?Display |
| Product model | EDM240128-67 |

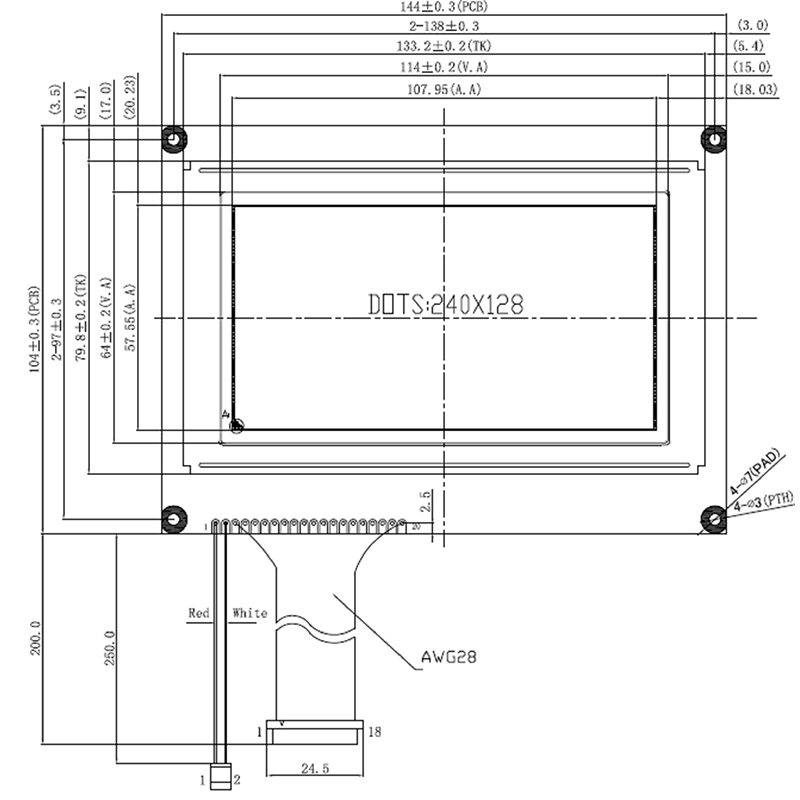

| Display content | 240x128 dot matrix display |
| Background | Blue |
| Interface | 8-bit parallel LCD |
| Driver chip model | LCD?controller??RA6963 |
| Module type | COB+SMT?LCD?Module |
| Connection | Zebra |
| Display type | STN LCD，Negative，Transmissive |
| Viewing angle | 6 O'clock |
| Operating voltage | 5V |
| Backlight type | LED?backlit |
| Backlight color | White |
| Operating temperature | -20~70℃ |
| Storage temperature | -30~80℃ |
