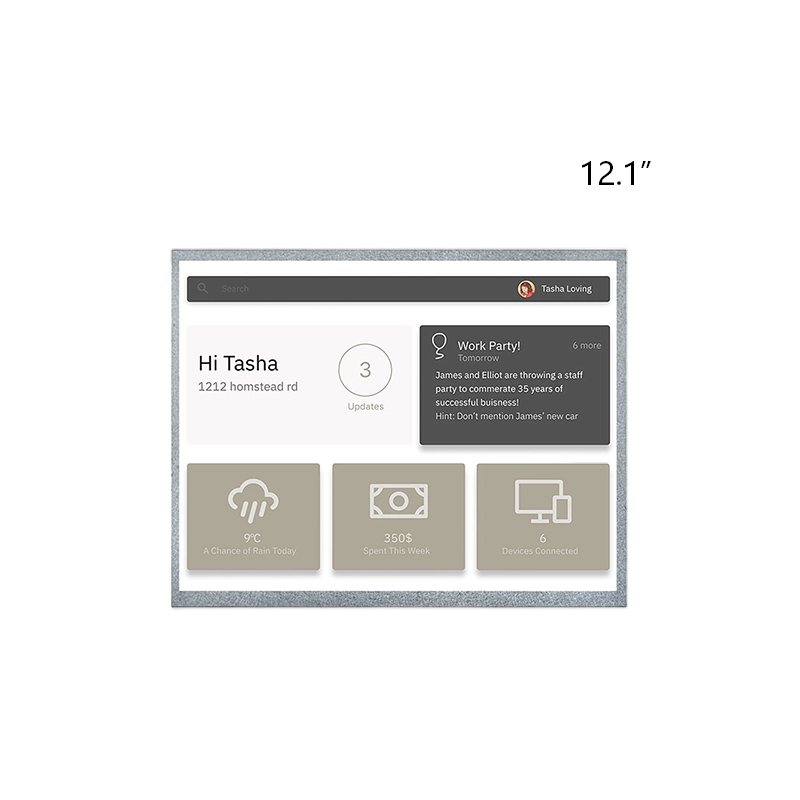

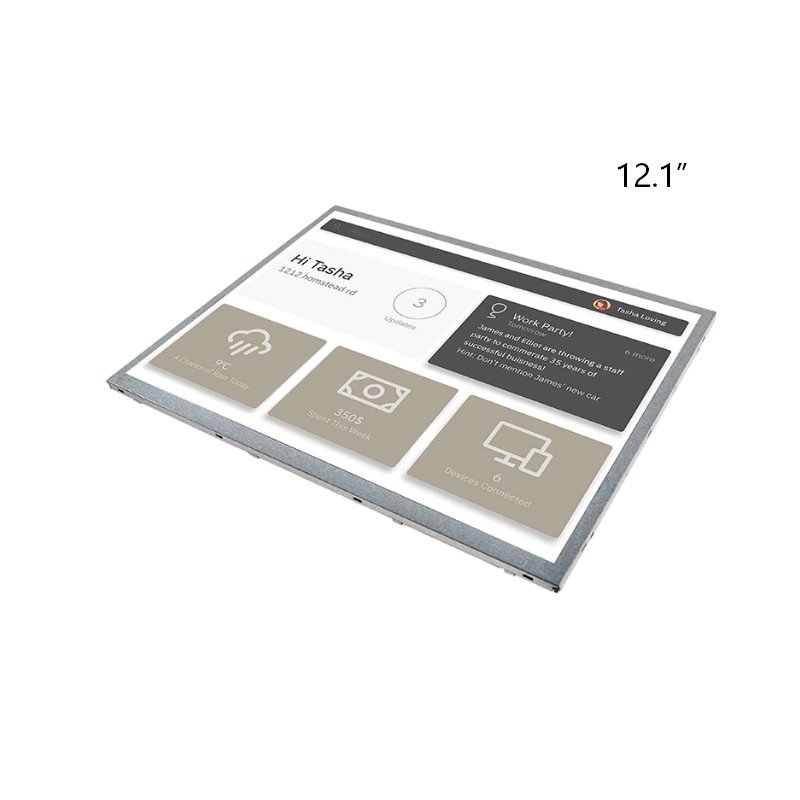

The 12.1-inch IPS panel features a 1280×800 high-definition resolution and a high brightness of 550 cd/m2, ensuring that displayed content remains clear and legible even under direct outdoor sunlight. The full viewing angle technology guarantees true and sharp colors from any viewing direction. The product supports stable operation over an ultra-wide temperature range from -30°C to +80°C, adopts a 3.3V low-voltage power supply and a standard LVDS interface, offers strong anti-interference capability, and is compatible with various industrial control systems. The backlight has a service life of up to 50,000 hours, providing stable operation and low failure rate, which significantly reduces maintenance costs. The slim and lightweight design facilitates device integration and is widely applicable in demanding scenarios such as industrial control, outdoor smart equipment, and security terminals, delivering durable and clear visual assurance for your devices.
EASTERN DISPLAY — Global Display Solution Expert
? Precise Adaptability
Provides full size coverage from 0.96" to 15.6", with resolutions ranging from 80×160 to 1920×1200. Over 200 standard models are available.
? Customization Services Offered
We provide the following customization services:
1. Backlight brightness
2. Cover glass thickness, shape, and material
3. 3A (AF/AR/AG) surface treatment processes
4. OCA full lamination
5. Integrated structural housing
6. Customizable CTP
? Trusted by Multinational Customers
Serving customers in 20+ countries including China, Germany, the United States, Poland, and Japan, providing over 5,000 custom TFT display solutions.
? Strict Environmental Standards
All products are ROHS and REACH certified.
| Manufacturer | Eastern Display |
| Product model | EDT121LSIND-01 |
| Resolution | 1280×800 |
| Interface | LVDS 6?or 8 BIT |
| Driver chip | / |
| Connection | FPC |
| Display type | 16.7M Color TFT display |
| Viewing angle | Free |
| Operating voltage | 3.3V |
| Backlight type | LED backlight |
| Backlight brightness | 550cd/m2 |
| Operating temperature | -30~+80 |
| Storage temperature | -30~+85 |
| Lifetime | 50000H |
