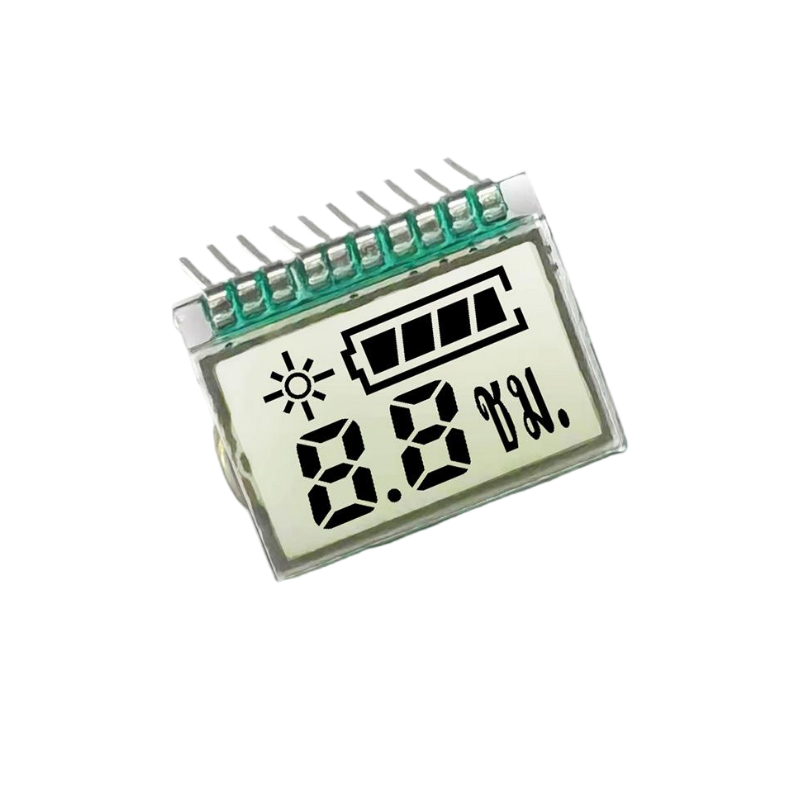

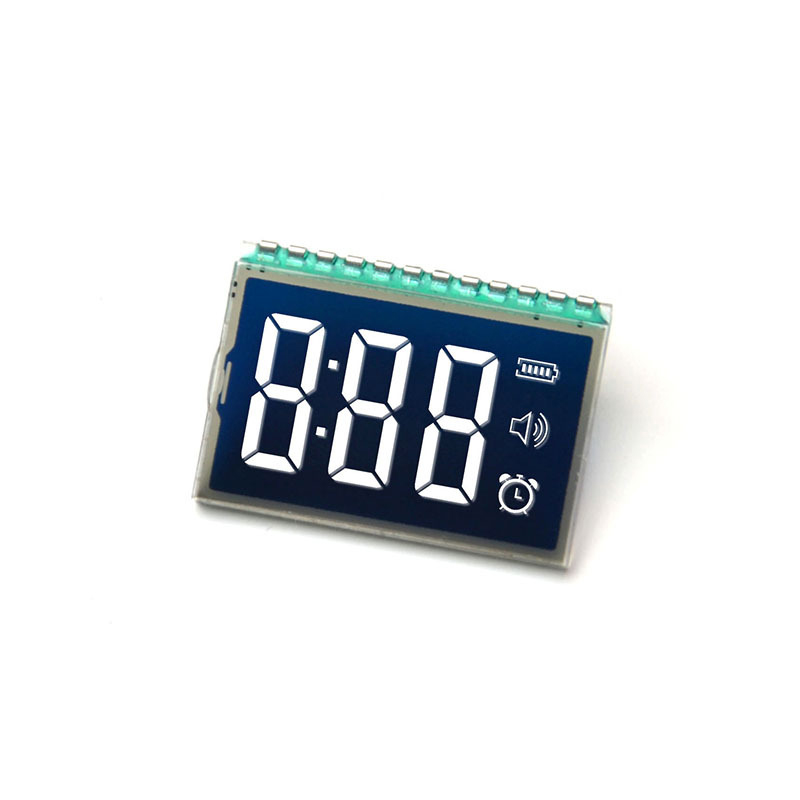

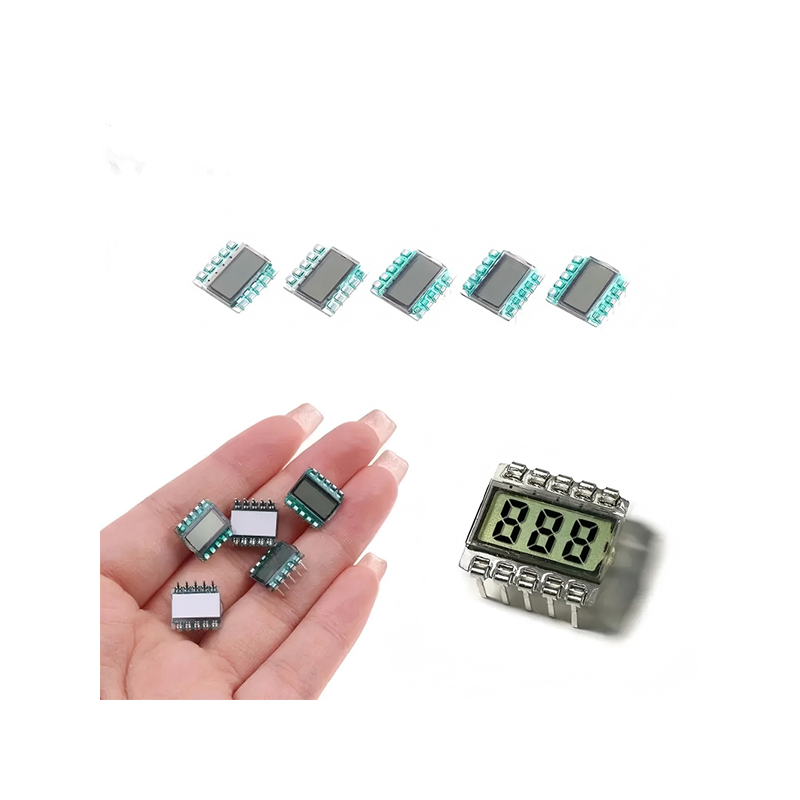

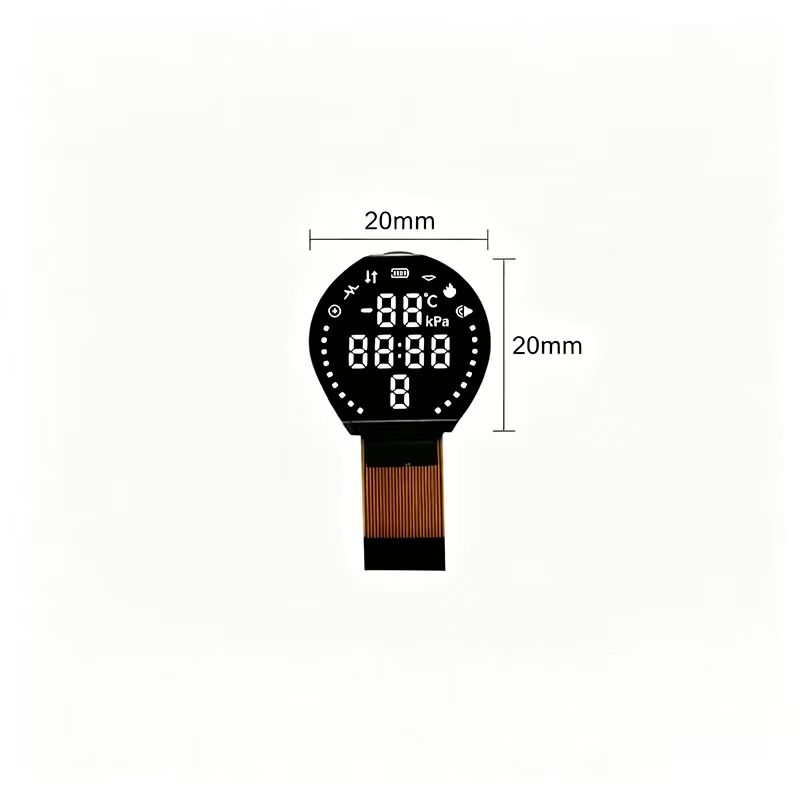

Ultra-small-sized segment LCD typically refers to products with both the length and width of the viewing area less than 20 mm. Leveraging the core advantages of low power consumption, high contrast ratio, and a streamlined structure, this type of LCD can be widely adapted to various small electronic terminals, making it an ideal solution for minimalist display scenarios.
Ultra-small-sized segment LCDs are commonly used in small-sized, low-power portable devices such as thermometers and measurement/testing equipment. The power consumption of the LCD itself can be controlled below 1 microampere. They support multiple display modes including TN, HTN, and VA, and are available with reflective, transmissive, or transflective backlight options. The COG (Chip on Glass) structure with an integrated driver IC is also supported. Our company is equipped with a dedicated fully automatic SMT production line for ultra-small-sized LCDs, which has overcome the production capacity bottleneck for this type of product, achieving a daily capacity of 100,000 pieces and enabling stable, high-volume, and high-efficiency delivery. Eastern Display has developed over ten thousand custom product models, ranging from EDC001 to EDC26080. The entire product series complies with RoHS 2.0 and REACH environmental requirements.
| Manufacturer | Eastern Display |
| Display mode | TN、HTN、VA |
| Viewing angle | 6/12 O’ CLOCK |
| Operating voltage | 3.0V ---5.0V |
| Viewing angle range | 90-150° |
| Connection | PINS/FPC |
| Driver chip model | Custom |
| Operating temperature | -40℃-80℃ |
| Storage temperature | -40℃-90℃ |
| Lifetime | 100000?H |
| Multi-color | YES |
| Special shaped | YES |
| Product features | Low-power?LCD /Portable LCD |
Keywords：custom lcd segment display/digital segment display/ small lcd/lcd panel price/lcd screen tester/lcd monitor tester/lcd monitor/monitor lcd/arduino lcd display/led dot matrix display/arduino dot matrix display/EDC22035DHC3P3/EDC20016SDC2P16/EDC23056VA
