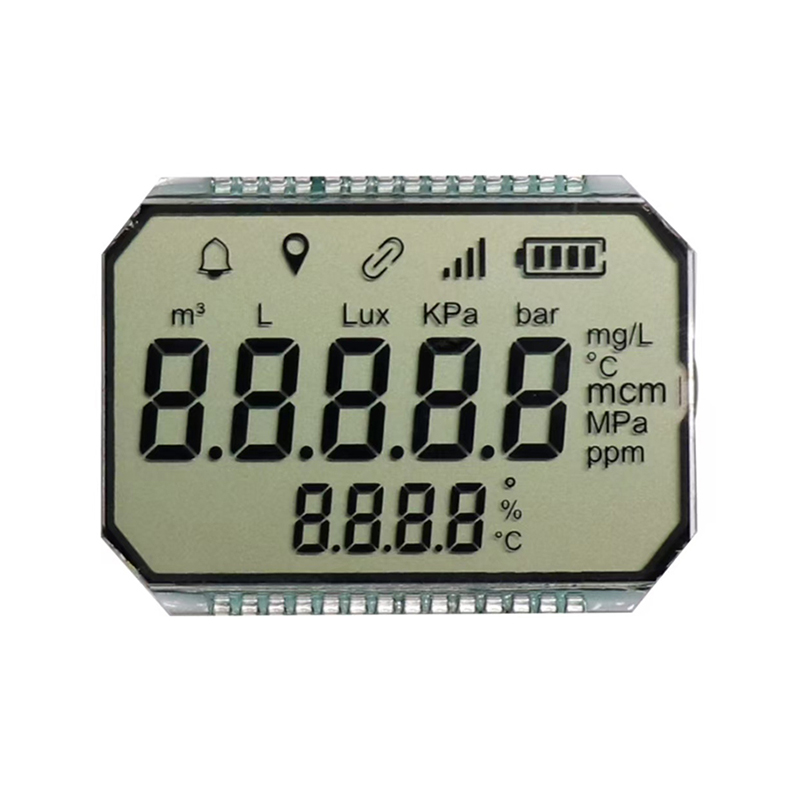

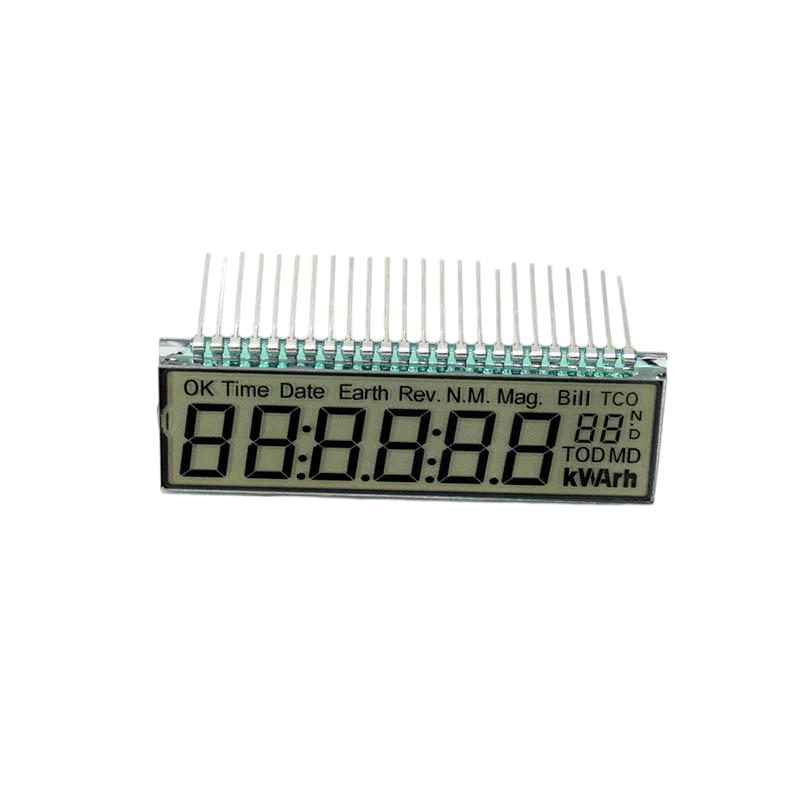

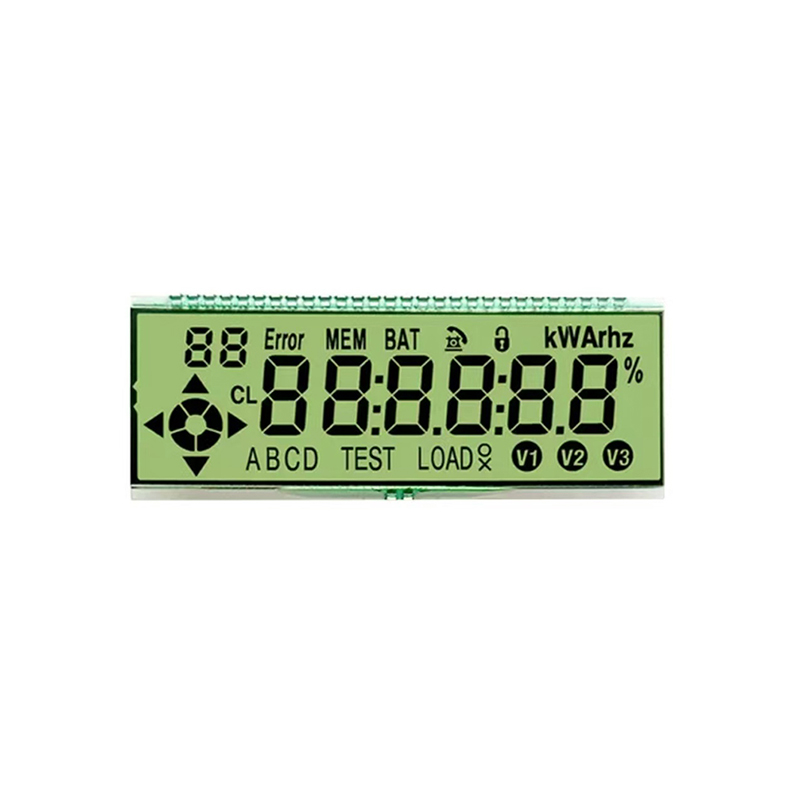

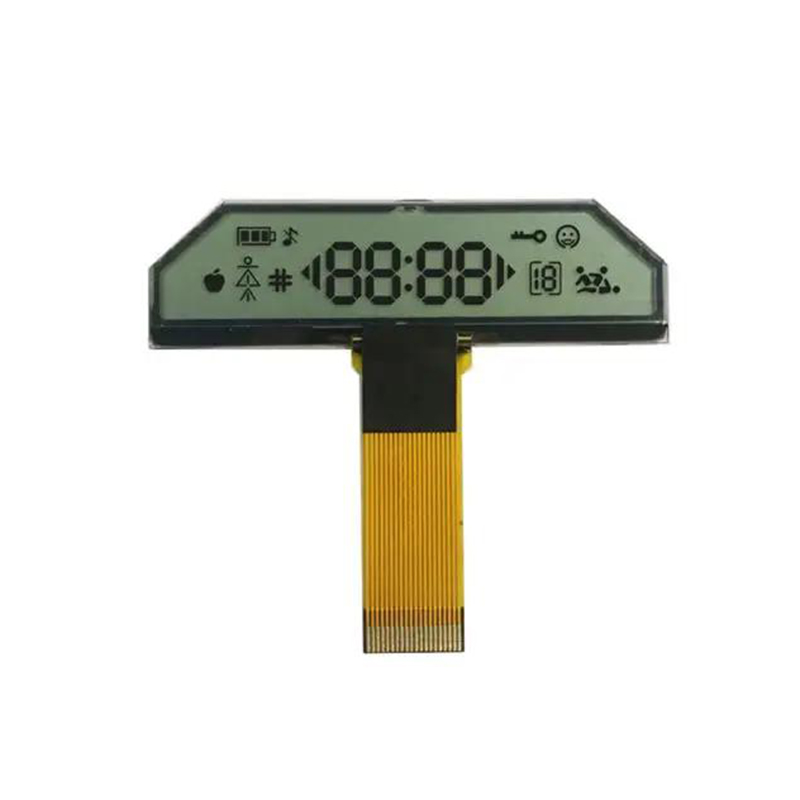

Reflective LCD is a type of liquid crystal display that utilizes ambient light for image display. Its core characteristic is that it does not use a backlight; instead, it presents images by reflecting ambient light. It offers advantages such as low power consumption, eye protection, and high visibility under strong light, and has been widely adopted in various specific application scenarios.
Reflective LCD illuminates the screen by reflecting ambient light to meet display requirements. The specific features of Reflective LCD are as follows: low power consumption, no need for a backlight, making it suitable for long-endurance devices powered by batteries or solar energy; excellent visibility under strong light, making it suitable for outdoor scenarios; outstanding eye protection, using diffuse reflection that simulates paper-based books to reduce blue light radiation, making it ideal for prolonged reading. This type of product can be manufactured in TN, HTN, STN, FSTN, and other variants, but it does not support use in dark conditions. These products can meet the parameter requirements of industries such as industrial, medical, automotive, and home appliances. Customized product models range from EDC001 to EDC26080, totaling over ten thousand models. All products comply with the RoHS 2.0 directive and REACH regulations.
| Manufacturer | Eastern Display |
| Display mode | FSTN/TN/HTN/STN?LCD |
| Viewing angle | 6/12 O’ CLOCK |
| Operating voltage | 3.0V ---5.0V |
| Viewing angle range | 100-160° |
| Connection | PINS/FPC |
| Driver chip model | / |
| Operating temperature | -40℃-80℃ |
| Storage temperature | -40℃-90℃ |
| Lifetime | 100000?H |
| Multi-color | YES |
| Special shaped | YES |
| Product features | Low-power?LCD/Sunlight readable LCD |
Keywords：7 inch TFT/SPI TFT display/TFT display screen/mini TFT display/5 inch TFT display/3.5 TFT display/4.3 inch TFTdisplay/TFT display touch screen/7 TFT display / TFT LCD/TFT LCD monitor/TFT LCD display/TFT LCD color monitor/EDC9872FSC2P10A/ EDC6825DC3P9/
EDC8763HDC2P7A?
VA LCD products are suitable for gas water heaters, including storage water heaters and combi condensing boilers. They feature high contrast, wide viewing angles, color and gradient display capabilities, an ultra-wide operating temperature range (-40°C to 80°C), and low driving costs. With custom segment displays, a mechanical device hidden in the kitchen or balcony is transformed into a smart home appliance that is communicative, controllable, and trustworthy. It not only enhances convenience and comfort in use but, more importantly, through transparent information delivery and precise fault alerts, becomes a critical proactive line of defense in the household gas safety system.
This product is a mini OLED display with a resolution of 128×32 pixels, an I2C interface, and a brightness of 150cd/m2. It operates within a temperature range of-40℃ to 70℃ and features ultra-low power consumption, high contrast, and a wide viewing angle. The display content is clear and prominent. It is widely used in applications such as pulse oximeters, paint film testers, flow meters, gas detectors, and temperature and humidity monitors.
Anti-static LCD screens are essential for automotive, industrial control, and mobile applications where LCD displays must withstand complex and dynamic environments with stringent electrostatic requirements—significantly higher than those for consumer electronics. Specific anti-static standards include contact discharge resistance typically rated at ±4kV, ±6kV, or ±8kV, while air discharge resistance ranges from ±8kV, ±15kV, to ±25kV.
Product description: TFT LCD display screens are widely used in various commercial ve...
Product description: Low-power segment LCD is a display technology widely used in ele...
Eastern Display manufactures various types of character dot matrix LCD modules and graphic dot matrix LCD modules. The display modes include Yellow-Green STN, Blue-White STN, and Gray-Black FSTN, among others. The production processes incorporate COB technology and COG technology. Paired with LED backlight of different colors, these modules can display various characters and graphics. They are easy to use, offer high reliability and cost-effectiveness, and provide diverse options, making them widely used in various types of power meters.
This customized segment code COG module features a TN LCD display integrated with driver chips using COG technology. The Transflective mode LCD panel is paired with LED backlighting, ensuring clear visibility in both bright and dim environments. It connects to the main MCU via a serial I2C interface through either a PIN or FPC connection. This LCD display module delivers low power consumption, a slim profile, excellent visual performance, stable operation, and cost-effective features.
The 12864 LCD in COG (Chip-on-Glass) mode offers four major advantages: extreme cost-effectiveness, a stable and reliable supply chain, compliance-friendly international certifications, and extreme environmental adaptability, making it an ideal display solution for OEMs balancing performance and total cost of ownership (TCO).
HTN LCD brings significant interaction upgrades and reliability assurance to refrigerator products. Its ultra-wide operating temperature range (-40°C to 80°C) perfectly suits freezer compartments and high-temperature kitchen environments, eliminating display failures under extreme conditions. With high contrast and wide viewing angle characteristics, the display remains clear and readable from any angle—whether viewed from the side, from a low angle, or under strong light—greatly improving the user experience. Moreover, this solution adopts a low-cost passive drive architecture that requires no complex TFT circuitry. The driver section cost can be reduced by 50%–70% compared to TFT-LCD, while its microampere-level power consumption adds almost nothing to the refrigerator’s overall energy use. It is an ideal choice that balances display performance, extreme-environment adaptability, and economical mass production.
This product is a 14432 LCD dot matrix display that can display graphics with 144 columns x 32 rows of pixels. The display uses a Blue Negative Mode LED backlit LCD to display white text on a blue background, with high contrast and wide viewing angle. The module contains a driver chip, uses COB production technology, and is connected to the main control MCU through a 3-wire SPI interface to display various images and texts. It contains a simplified Chinese character library, and data transmission is simple.
This product is a custom segment code COG module, featuring a VA LCD display. It uses the COG module process and integrates a driver chip. The LCD screen operates in VA mode and is connected to the main MCU via an I2C interface, using FPC for the connection method. This type of liquid crystal display module can be customized as needed, offering high contrast, wide viewing angles, excellent display quality, a wide operating temperature range, low power consumption, a lightweight and thin design, and stable performance.
This product is a 256104 LCD dot matrix display that can display graphics with 256 columns x 104 rows of pixels. The display uses ASTN Negative mode LED backlit LCD, which displays white text on a black background, with high contrast and wide viewing angle. The module contains a driver chip and adopts COG production technology, which is thin and light with low power consumption. It is connected to the main control MCU through an 8-bit parallel LCD interface to display various images and texts.
This product is a 19264 LCD dot matrix display capable of displaying graphics at a resolution of 192 columns × 64 rows of pixels. The display features an STN Negative Mode LED-backlit LCD, showing blue background with white characters, offering high contrast and a wide viewing angle. The module integrates a driver chip and adopts COB (Chip on Board) manufacturing process. It connects to the host MCU via an 8-bit parallel LCD interface and is used for displaying various images and text.
The COG LCD product is widely used in differential pressure flowmeters, positive displacement flowmeters, variable area flowmeters (rotameters), turbine flowmeters, electromagnetic flowmeters, vortex flowmeters, ultrasonic flowmeters, mass flowmeters, volumetric flowmeters, and more. Its dot matrix display can present information such as instantaneous flow rate, total accumulated flow, operational status indicators, engineering units, conductivity/empty pipe alarms, frequency/signal strength, temperature and density, speed of sound, and time of flight difference,?in multiple languages as well as digitally. It ensures the accurate and reliable display of measurement data from the instrumentation.
The 2-inch TFT display is a miniaturized TFT screen that supports high-resolution true-color reproduction and an ultra-wide viewing angle. Designed with low power consumption and featuring a standard SPI interface, it is commonly utilized in industrial control instruments such as thermostats, hazardous gas detectors, combustible gas alarms, concentration meters, digital anemometers, and more.
The Color Printing LCD Segment Display achieves monochrome, color, and gradient effects by applying ink to the surface of polarizers through screen printing or inkjet printing processes. It is widely used in industrial instruments, medical equipment, consumer electronics, and other fields.
